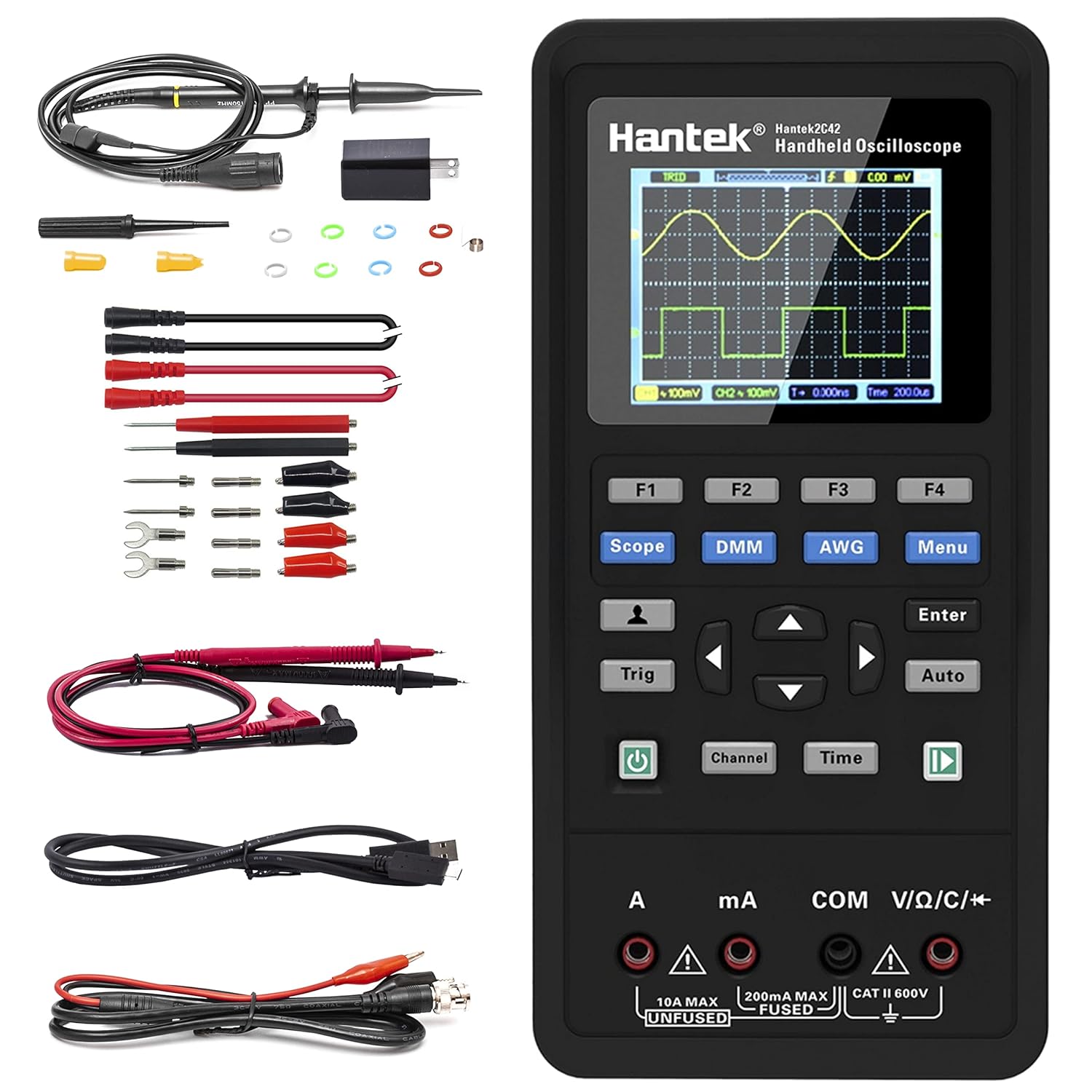

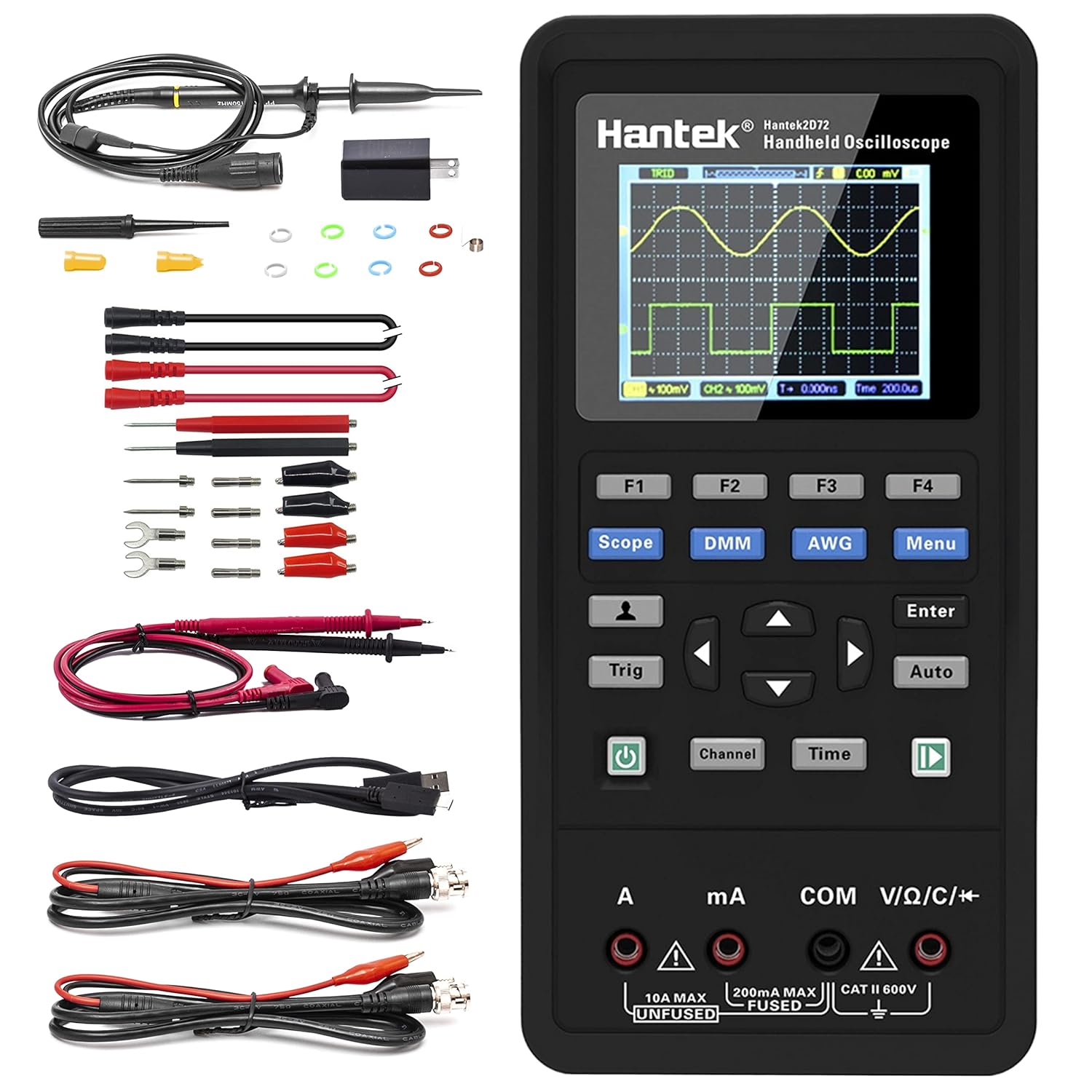

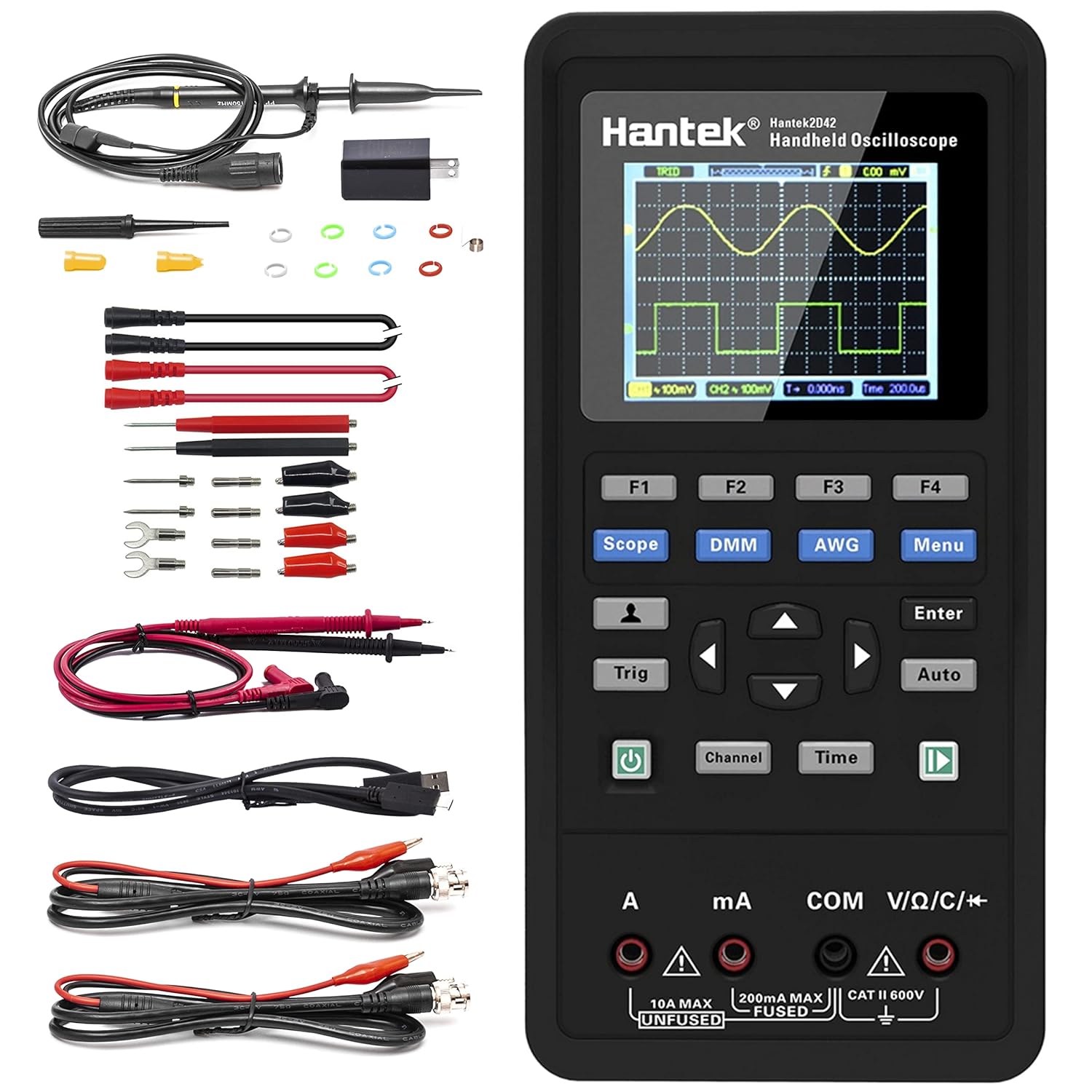

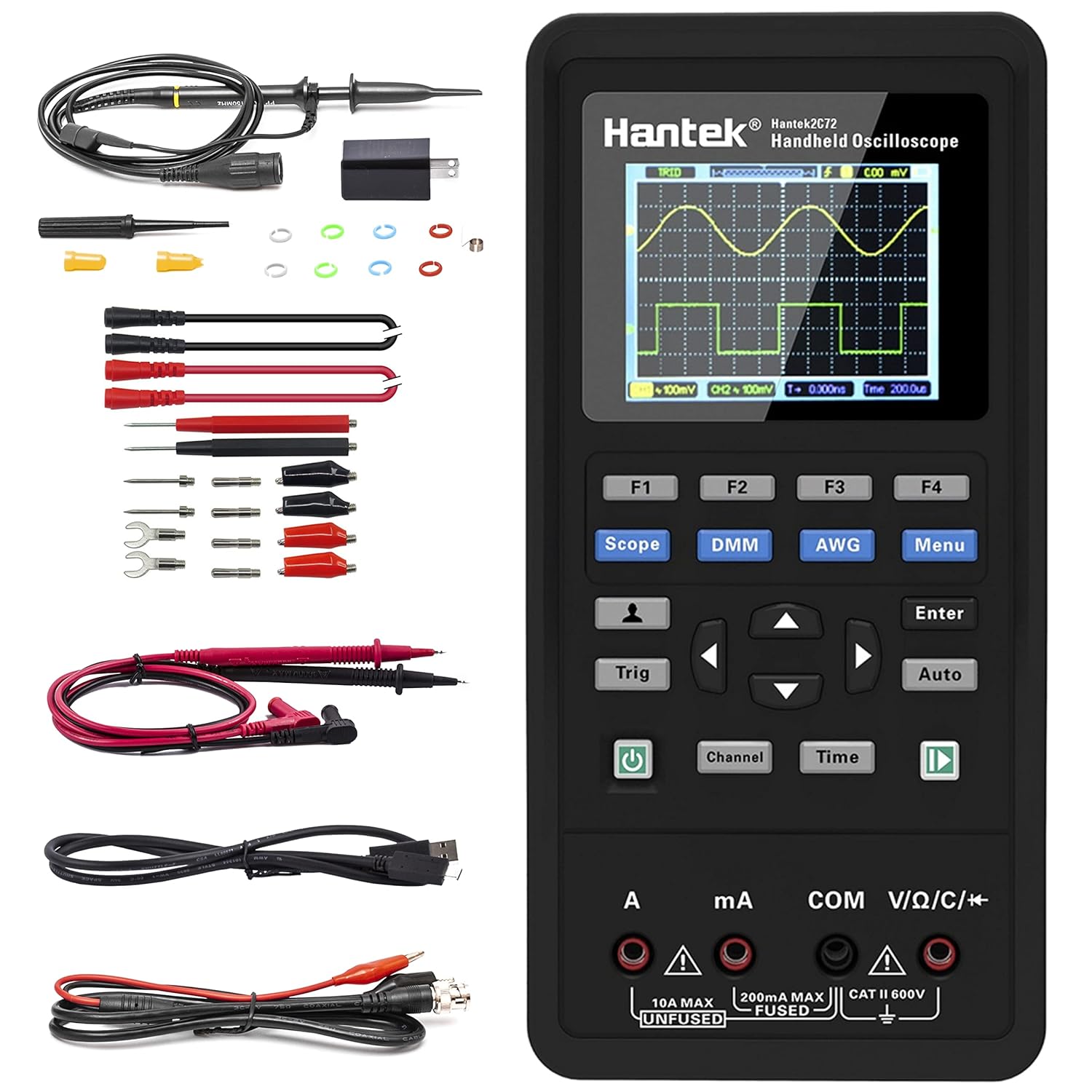

Handheld Oscilloscope 70MHz 3 in 1 Multifunction Tester 2CH+AFG+DMM J668
Sale price
$20.99
Regular price $98.40
Skip to product information
Function: Oscilloscope+Multimeter+Waveform Generator; 70 MHz Digital Oscilloscope with 2 channels -- Sample Rate Range 250MSa/s(Single-channel), 125MSa/s(Dual-channel).Simplify operation, convenient to use: 250M Sampling rate, 70MHZ Bandwidth. 10MV-10V Vertical resolution; Auto automatic measuring function; Key tone settings, Adjustable backlight brightness, Backlight, duration and auto power off time. Digital voltmeter function, Cursor measurement, reference waveform,waveform Storage function.Multifunction Digital Multimeter Function, High sensitivity and accuracy, showing clear, stronganti-overload capability, easy to carry. Digital multimeter which can be used to measure AC/DC voltage/current, resistance, diode,capacitance, on-off test.Large-capacity Lithium Battery + Ultra Low Power + Type C Data Transfer/Charging Interface 18650 replaceable lithium battery power system; Be able to recharged by 5V/2A large current or ordinary computer USB port,allow while charging, very convenient and handy; Type C charging interface, after every recharge of 2 hours, the device can be used continuously for a full day or standby more than two months.We offer 1 year warranty with 30 days worry-free return, so 100% satisfaction and zero hassle returns guaranteed. Please don't hesitate to contact us when you use the item.
Handheld Oscilloscope 70MHz 3 in 1 Multifunction Tester 2CH+AFG+DMM J668
Sale price
$20.99
Regular price $98.40
Shipping calculated at checkout.
| 2C42 | 2C72 | 2D42 | 2D72 | 2D15 | 1008C | |
|---|---|---|---|---|---|---|
| Channel | 2CH+DMM | 2CH+DMM | 2CH+AFG+DMM | 2CH+AFG+DMM | 2CH+AFG | 8CH |
| Bandwidth | 40MHz | 70MHz | 40MHz | 70MHz | 150MHz | 100MHz |
| Sample | Direct charge | Direct charge | Direct charge | Direct charge | Direct charge | USB |
| DMM | ✓ | ✓ | ✓ | ✓ | ✓ | |
| Record Length | Max. 6K for single-channel; 3K samples per dual-channel Max. 6K for single-channel; 3K | Max. 6K for single-channel; 3K samples per dual-channel Max. 6K for single-channel; 3K | Max. 6K for single-channel; 3K samples per dual-channel Max. 6K for single-channel; 3K | Max. 6K for single-channel; 3K samples per dual-channel Max. 6K for single-channel; 3K | Single channel maximum 8M,Two channels maximum 4M | 4K |
| Sample Rate Range | 250MSa/s(Single-channel), 125MSa/s(Dual-channel) | 250MSa/s(Single-channel), 125MSa/s(Dual-channel) | 250MSa/s(Single-channel), 125MSa/s(Dual-channel) | 250MSa/s(Single-channel), 125MSa/s(Dual-channel) | 1GSa/s (single channel),500MSa/s (two channels) | 2.4MSa/s |
| AFG | ✓ | ✓ | ✓ | |||
| Arbitrary Waveform | 250MSa/s | 250MSa/s | 200MSa/s |
