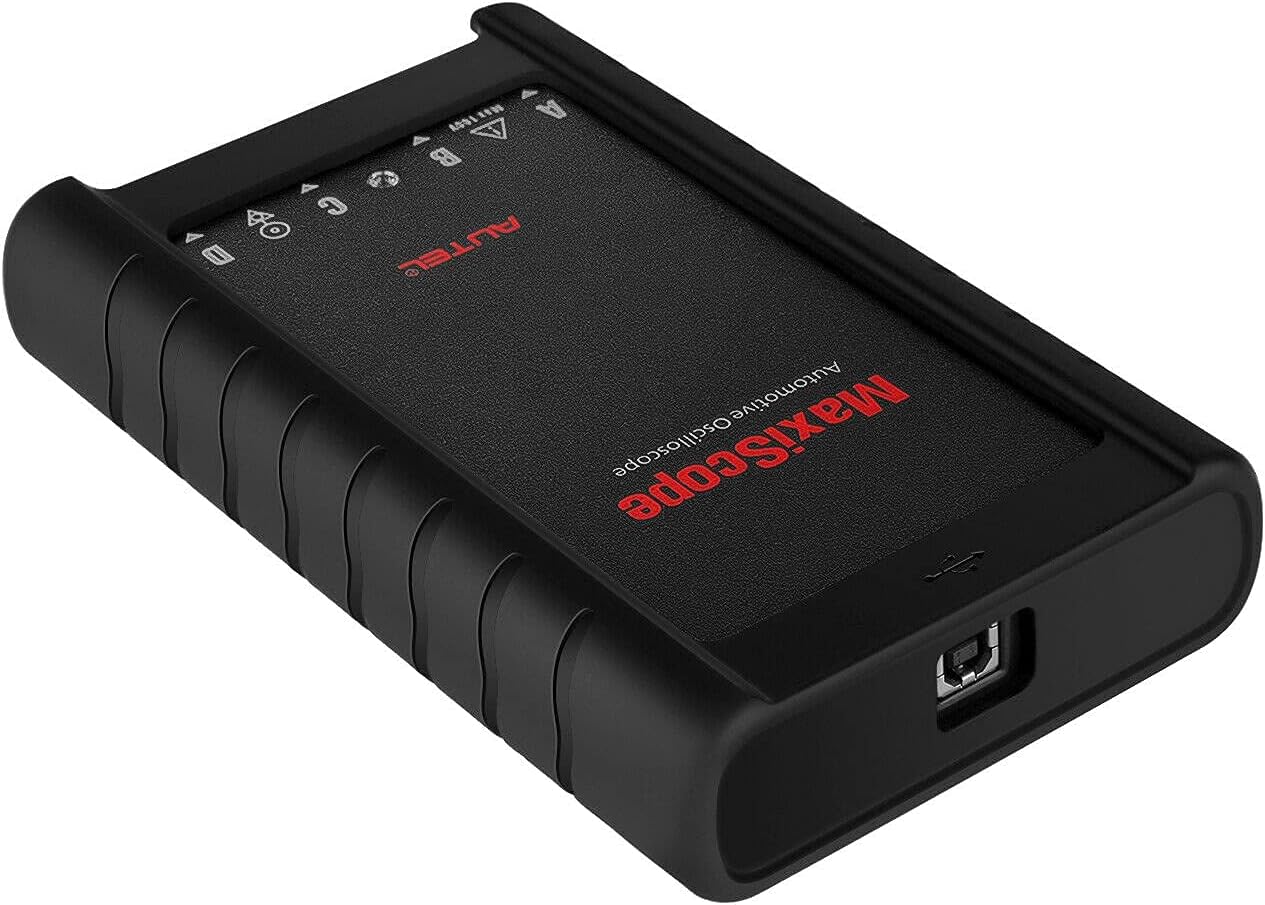

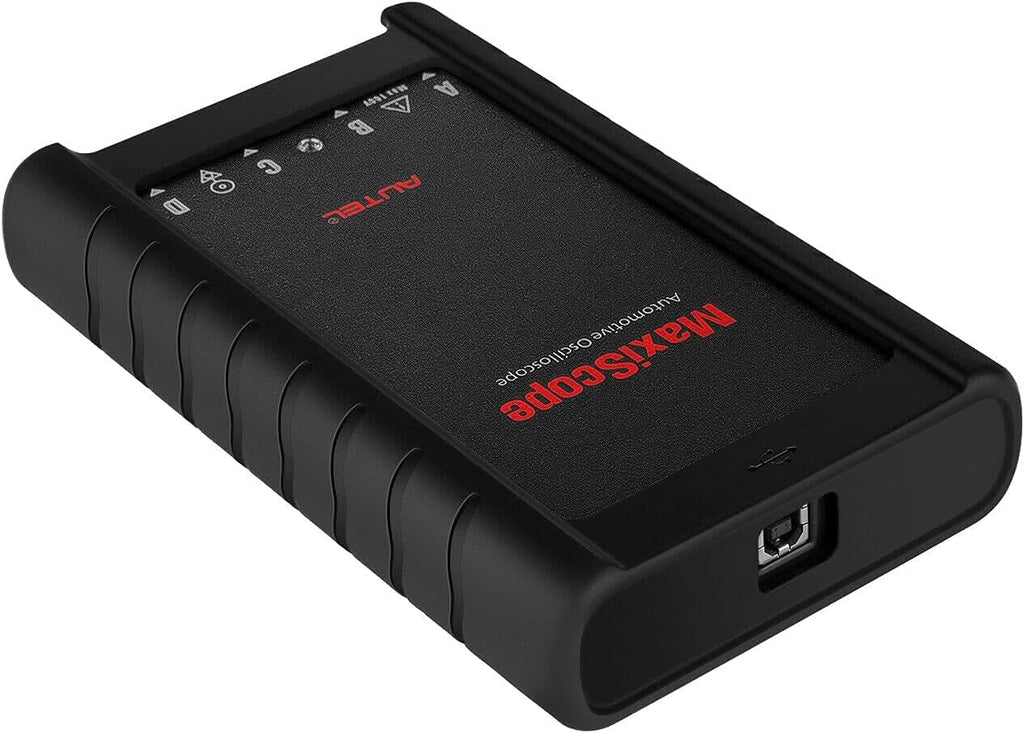

Autel MaxiScope MP408 4-CHANNEL PANEL:Faster Sampling, Autel MP408 can capture signals four times faster than any other oscilloscopes, a high speed sampling rate from 80MS/S TO 20MS/s and incredible bandwidth of 20MHz, which makes viewing waveforms on high resolution 8” or 10” color screen clear and simple.Autel MP408 can work in combination with your PC or MaxiSys Tablet, which turns into a powerful diagnostic tool via the MaxiScope Software, a processing program that runs on the computer, or via the MaxiScope App, a processing program that runs on the Android tablet, to present as an operating interface displaying waveforms and menus allowing users to set the testing options, triggers, probe types and various configurations.Autel MaxiScope MP408 measures and tests virtually all the electrical and electronic components and circuits in most modern vehicles. In addition, it can be used in a wide range of industries related with electronic signals. Power for the MaxiScope MP408 comes directly from the USB port of the connected PC, so no batteries or power leads are required, making the system very versatile and portable to use.Featuring one-click auto setup of the voltage scale and time base, Autel MP408 is compatible with LIN, CAN and FlexRay data bus standards to read and display electrical signals in high resolution waveforms. Capture Every Detail, By observing the waveform curves, users can effortlessly capture every detail of the signal to determine whether the electronic component is working properly. Never again will you miss those hard-to-find intermittent faults.Autel MaxiScope MP408 guarantees that this product will be free from all defects in materials and workmanship for a period of one (1) year from the date of the original purchase with free online software update through the Internet.

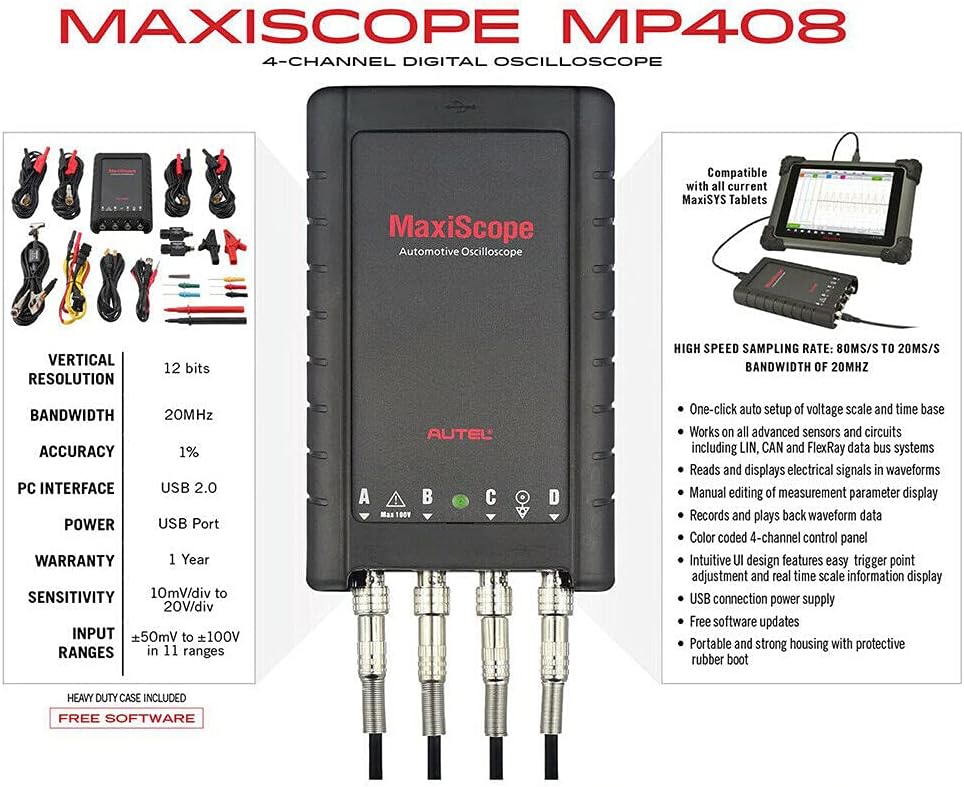

The MP408 is able to measure and test virtually all the electrical and electronic components and circuits in any modern vehicles, compatible with LIN, CAN and Flex Ray data bus standards. It features one-click auto setup of voltage scale and time base, allows manual editing of measurement parameter display. It features color coded 4-channel control panel. Read/ display/ record/ playback high resolution waveform data. It has direct power supply through USB connection, no battery required. Specifications Vertical resolution : 12 bits Channels : 4 Bandwidth : 20MHz Accuracy : 1% Sensitivity : 10mV/div to 20V/div PC Interface : USB 2.0 – Cable supplied Power Requirements : Powered from USB port Input Ranges (full scale) : ±v50mV to ±100V in 11 ranges Input Impedance : 1MΩ in parallel with 22pF Input Type : Single-ended, BNC connector Input Coupling : Software selectable AC/DC Overload Protection : ±200V on single input Buffer Memory : 105ft samples shared among active channels Waveform Buffer : Up to 1000 waveforms Time base Ranges : 100ns/div to 1000s/div Operating Temperature Range : 32℉to 122℉ (59℉ to 104℉for quoted accuracy) Storage Temperature Range : -4℉ to +140℉ Storage Humidity Range : 5% to 95%RH, Non-condensing Maximum Sampling Rate (Single Shot) : -1 or 2 channels in use : 80MS/s -3 or 4 channels in use : 20MS/s Package Including 1pcs x Autel MaxiScope MP408 Interface 1pcs x 1.5m USB Cable 4pcs x 3m(10ft) Screened Test Leads 1pcs x Secondary Ignition Pickup 1pcs x 2-pin Breakout Lead 2pcs x Attenuators 20:1 1pcs x Large Crocodile Clip Set 1pcs x Small Crocodile Clip Set 1pcs x Acupuncture Probe Set 1pcs x Multimeter Probes
